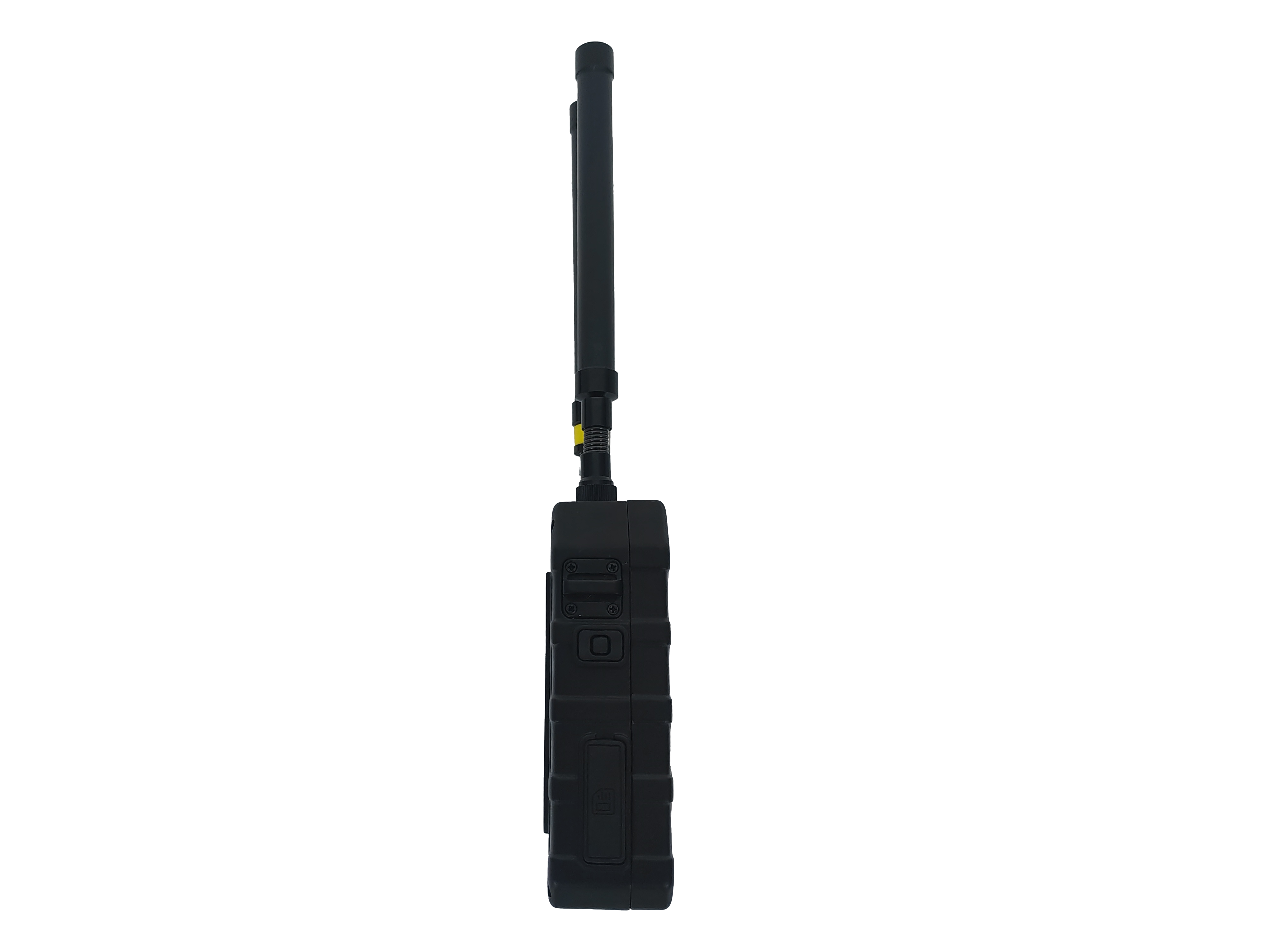

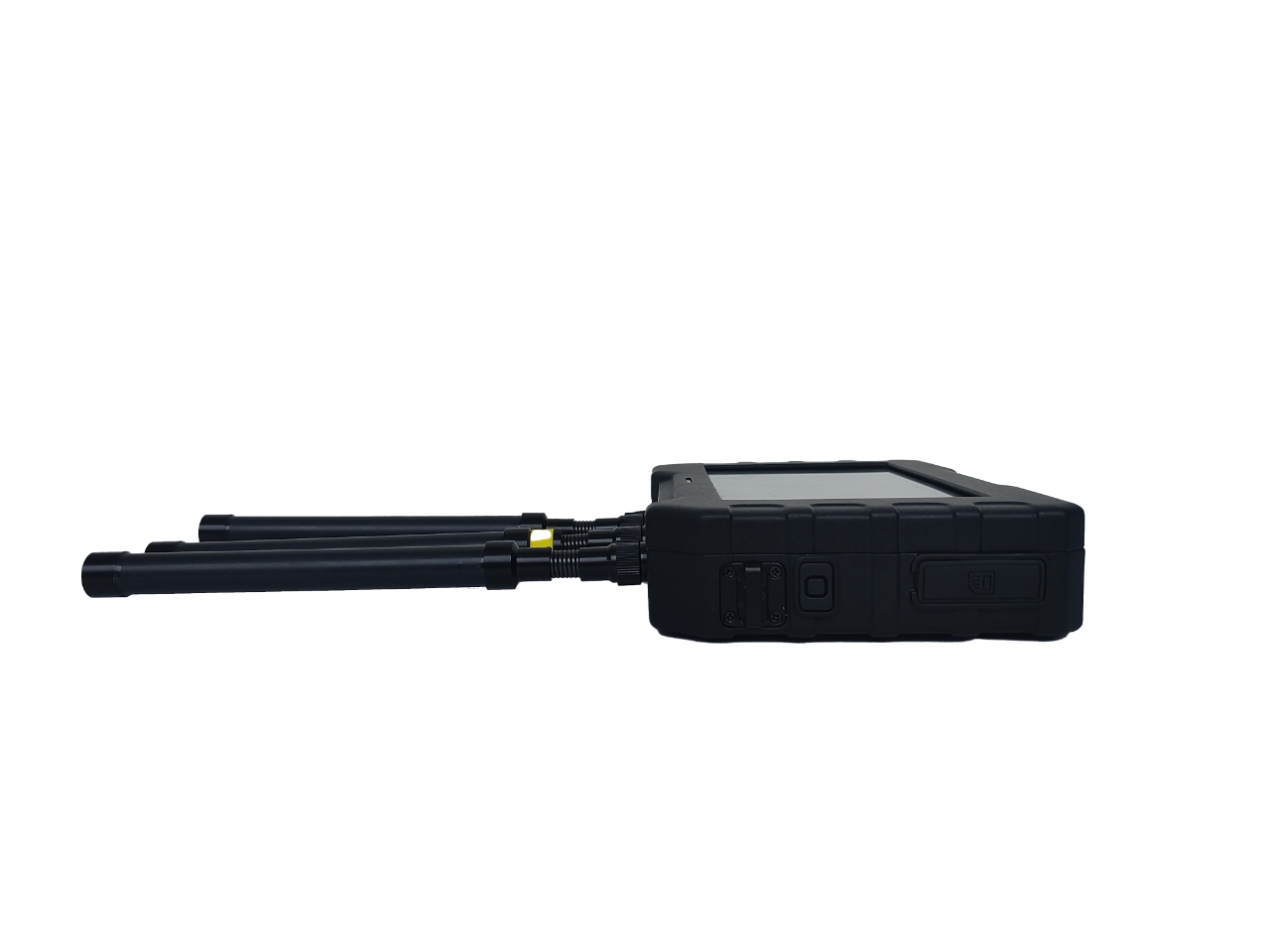

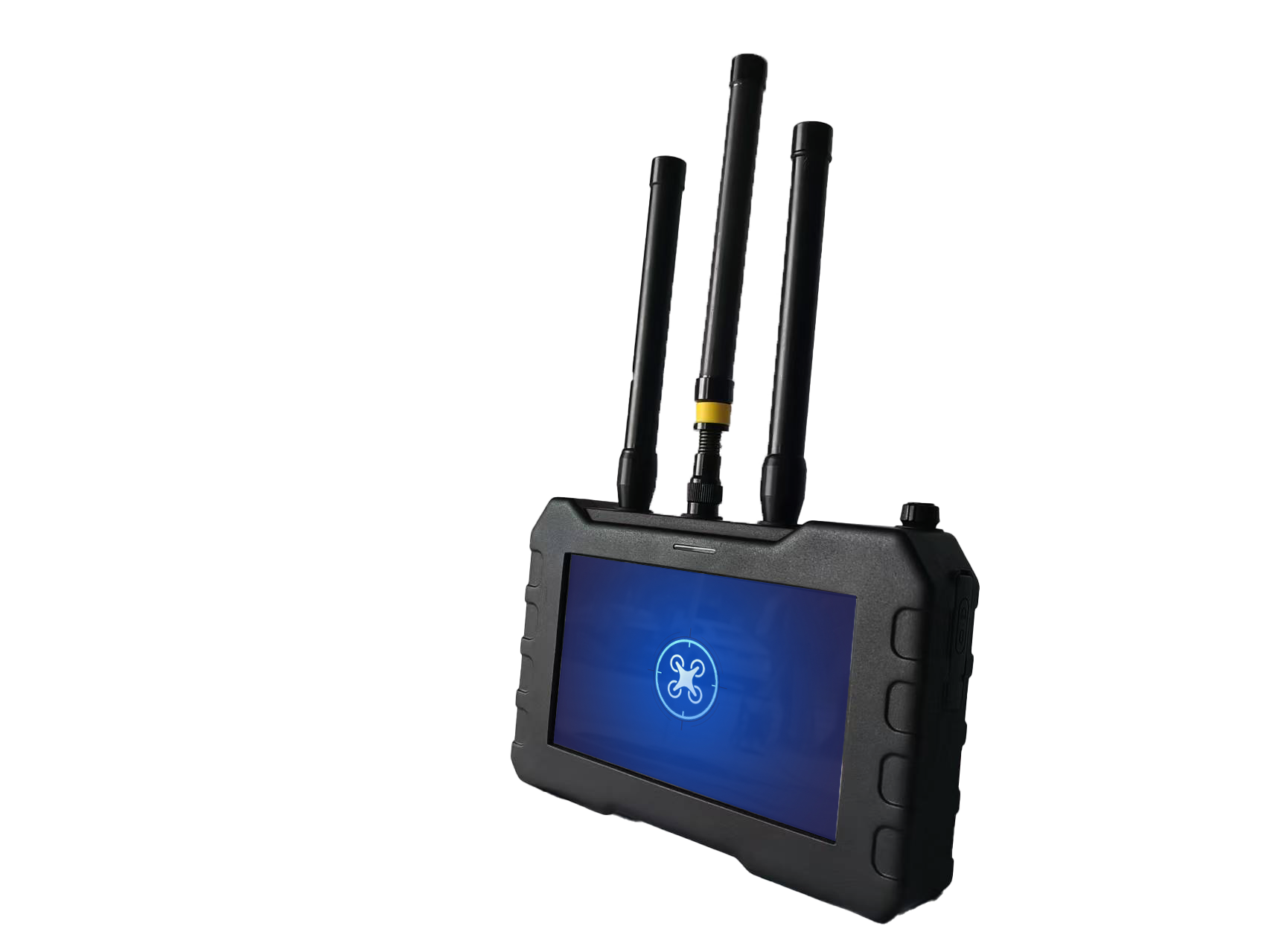

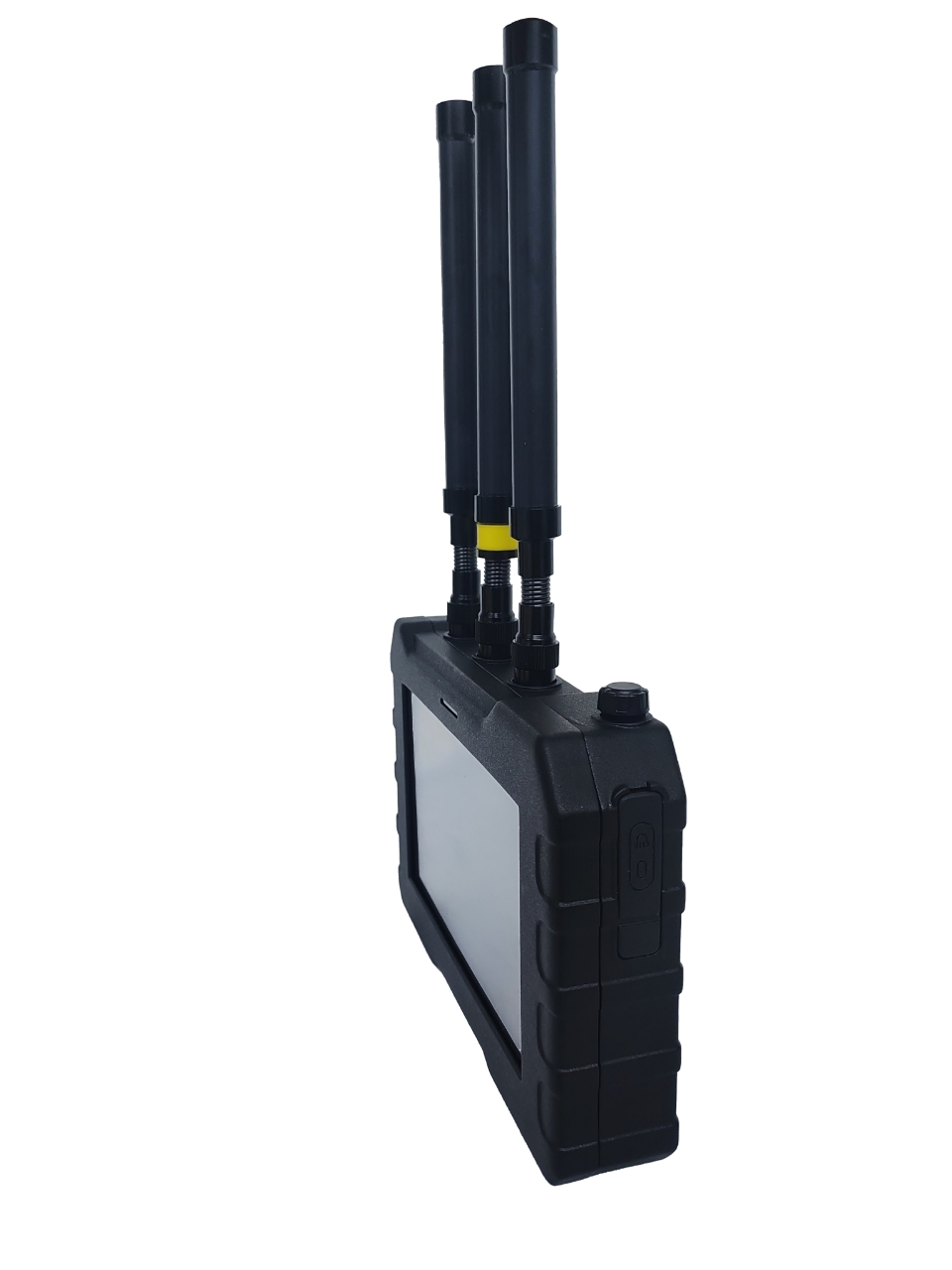

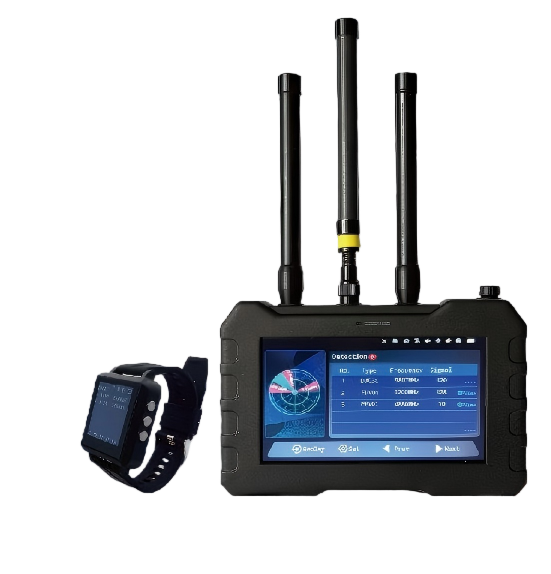

DR400-D Portable FPV Video Transmission Detected and Captured Device

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

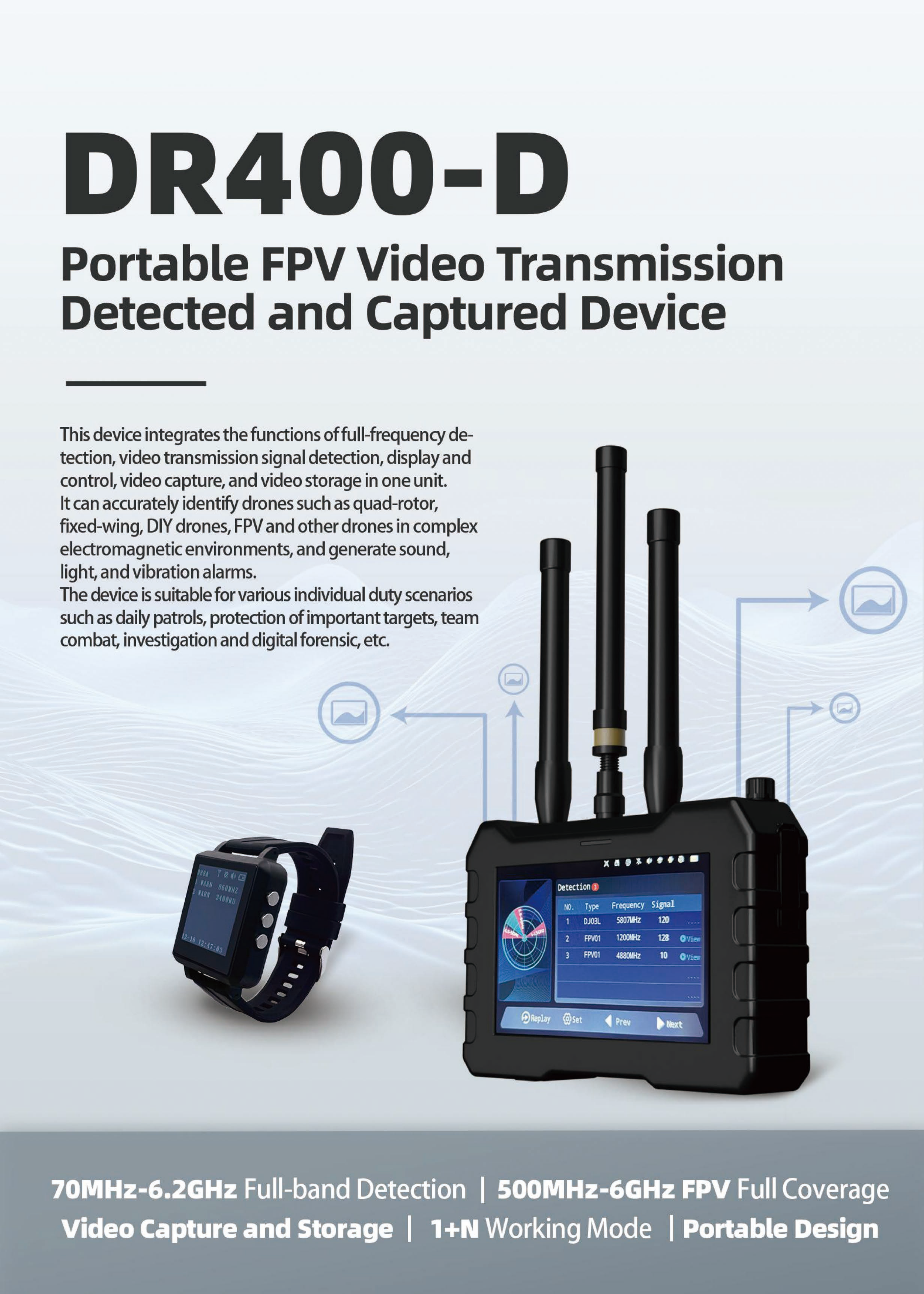

This device integrates the functions of full-frequency detection, video transmission signal detec-
tion, display and control, video capture, and video storage in one unit.lt can accurately identify
drones such as quad-rotor, fixed-wing, DIY drones, FPV and other drones in complex electromag-
netic environments, and generate sound, light, and vibration alarms.The device is suitable for
various individual duty scenarios such as daily patrols, protection of important targets, team
combat, investigation and digital forensic, etc.
Availability:
Quantity:
Inquire Add to Basket

Features:

  • 70MHz-6.2GHz Full-band Detection

  • 500MHz-6GHz FPV Full Coverage

  • Video Capture and Storage

  • 1+N Working Mode

  • Portable Design

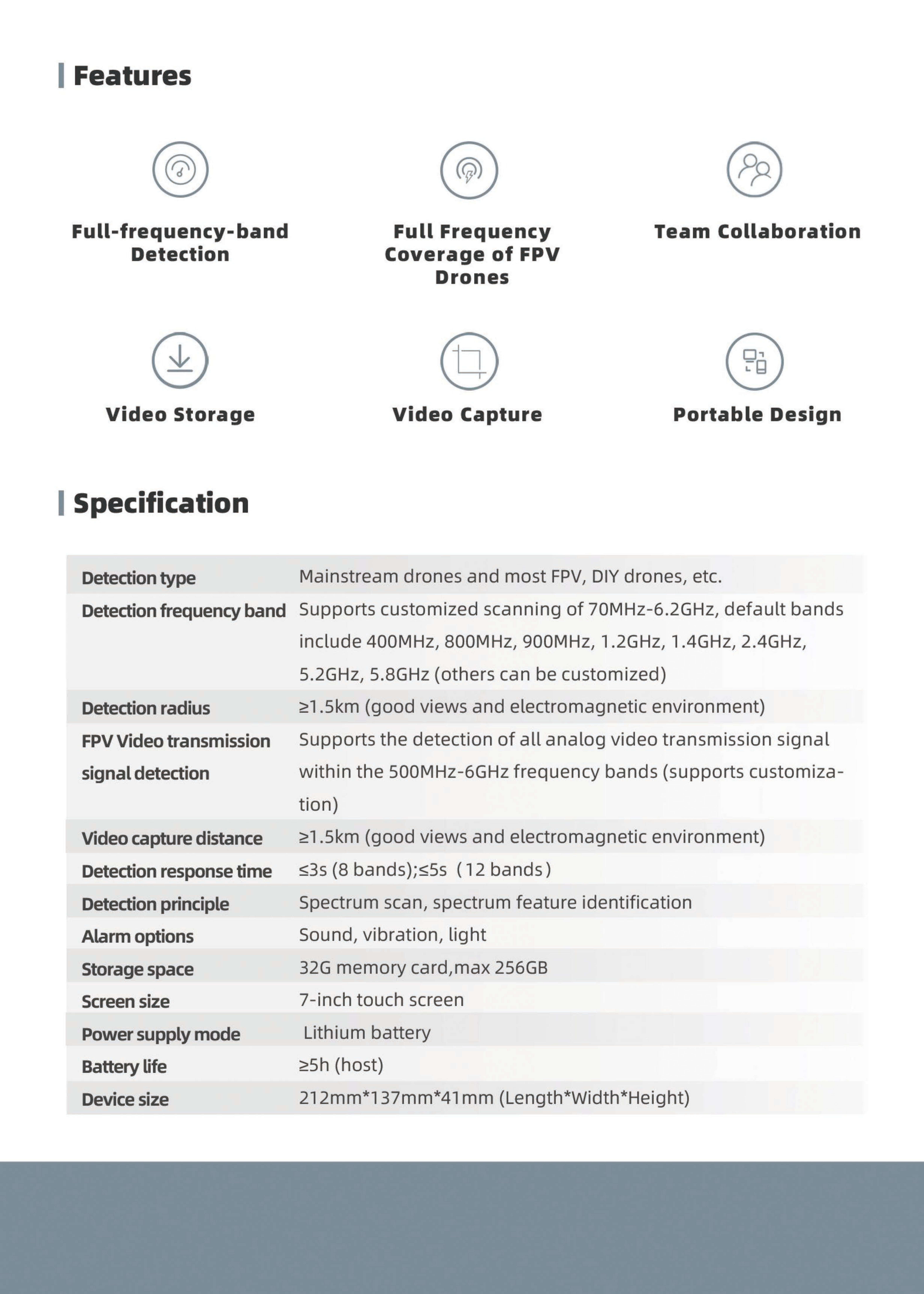

Specification:


Detection typeMainstream drones and most FPV, DIY drones, etc.
Detection frequency bandSupports customized scanning of 70MHz-6.2GHz, default bands include 400MHz, 800MHz,900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz (others can be customized)
Detection radius≥1.5km (good views and electromagnetic environment)
FPV Video transmissionSupports the detection of all analog video transmission signal within the 500MHz-6GHz
signal detectionfrequency bands (supports customization)
Video capture distance≥1.5km (good views and electromagnetic environment)
Detection response time≤3s(8 bands);≤5s (12 bands)
Detection principleSpectrum scan, spectrum feature identification
Alarm optionsSound, vibration, light
Storage space32G memory card,MAX 256GB
Screen size7-inch touch screen
Power supply modeLithium battery
Battery life≥5h (host)
Device size212mm*137mm*41mm (Length*Width*Height)


Previous:
Next:
FPV Drone Video Receiver Portable Drone Signal Detector Real-time UAV Video Capture FPV Transmission Scanner Anti FPV Racing Drone Device

Related Products

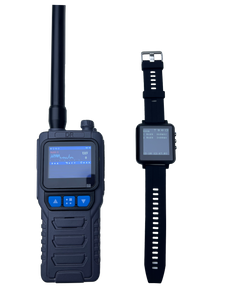

DR400-E(A) Portable Drone Detection and Wrist Watch Alert Coordination Device
