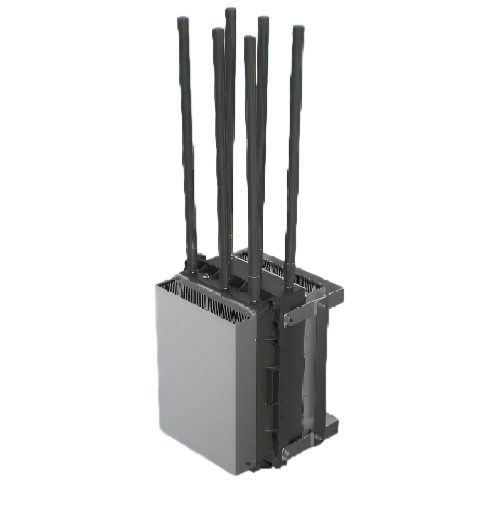

DR200-S2 Fixed High Power Spoofing Device

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The device modifies a fixed communication box, adopting heat dissipation structure design. By
simultaneous interference through multiple frequency bands, it can achieve full-band coverage of
the targeted full-band satellite navigation receiver. It can also cover Pcodes and Mcodes at the same
time, and achieve interference to the adaptive antenna. The device can be connected to a tablet or
PC to achieve remote control of single or multiple devices.
Availability:
Quantity:
Inquire Add to Basket

Features:

  • Full Band Interference

  • Heat Dissipation Structure Design

  • Remote Control of Multiple Devices

  • Interference Distance of 15km


Specification:

Working frequency bands1160MHz ~1300MHz,1550MHz~1615MHz
Transmit power0-120W (Can be configured according to actual usage environment)
Interference distance≥15Km (The test results are different due to different drone models and electro-magnetic environments)
Interference frequency points1176.45MHz, 120714MHz, 1227.6MHz, 1246MHz, 1268.52MHz, 1278.75MHz,
1561.098MHz, 1575.42MHz, 1602MHz
Interference target frequency pointsGPS L1 C/A, GPS L1C, GPS L1 P(Y), GPS L1 M, GPS L2C, GPS L2 P(Y), GPS L2 M,
GPS L5, GLONASS G1 C/A,GLONASS G1 P, GLONASS G2 P, Galileo E1, Galileo
E5a, Galileo E5b, Galileo E6, QZSS L1C, L1C/A and L1-SAIF, QZSS L2C, QZSS L5
Spoofing module (optional)GPS L1/GLONASS R1/Galileo E1
Signal effective time≤3s
Device power supplyExternal AC220v power supply
Working temperature-20°C~+55°C
Weight≤62Kg
Device power consumption≤3500w
Waterproof levelIP65
Size443mm*435mm*608mm±10mm (Length*width*height)
Supported languageChinese, English, Other language customizable
