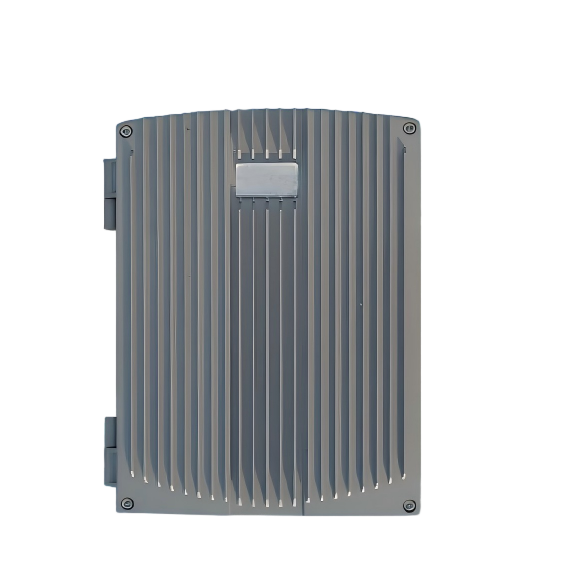

DR200-S3 Fixed Precise Spoofing Device

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
The product performs spoofing interference on drones by generating satellite navigation spoofing
signals. Under the interference, the satellite navigation coordinate information will become the preset
trajectory or position in the spoofing system, and the generated spoofing signal is GPS L1/GLONASS.
It can simultaneously interfere with multiple navigation signals.
Availability:
Quantity:
Inquire Add to Basket

Features：

  • 500-1000m Precise Spoofing

  • Defense/Drive-away Mode

  • Simultaneous Interference With Multiple Navigation Signals

  • 24h on Duty


Specification：

Supported frequency bandsGPS:1575.42+1.023MHz GLONASS: 1602.0MHz+Nx562.5kHz511kHz(N =- 7~6)
Signal transmission power≤10dBm
Effective distance500-1000 m, adjustable in 0-500 m
Spurious emissions30MHz - 1GHz (RBW 100kHz) <- 36dBm
1GHz - 18GHz (RBW 1MHz)<30dBm
Frequency tolerance+2*10⁻⁶
Supported modesDefense mode, drive-away mode
Signal intrusion time≤10s
Device power consumption≤30w
Working temperature-40°C ~+70°C
Weight≤20kg (Cable not included)
Protection levelNo less than IP65
Size370mm*300mm*192mm(Length*width*height)
