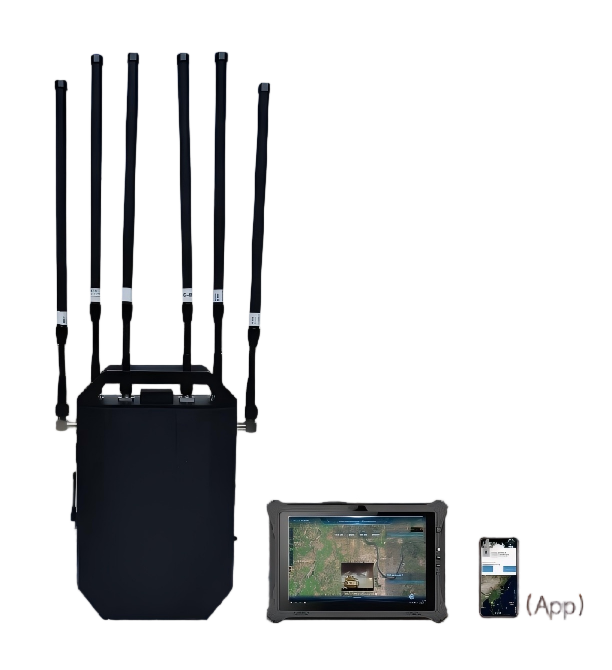

DR600-A All-Scenario Drone Detection and Positioning Device DR600-A All-Scenario Drone Detection and Positioning Device

loading

DR600-A All-Scenario Drone Detection and Positioning Device

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
This device integrates full-spectrum detection, drone and pilot positioning, FPV video capture and
storage. It is capable of accurately identifying quadcopters, fixed-wing drones, DIY types, and FPV
drones in complex electromagnetic environments, and provides audible, visual, and vibration alerts. It is
primarily used in scenarios such as routine patrols, critical asset protection, team operations, and
investigation and evidence collection.
Availability:
Quantity:
Inquire Add to Basket

Features:

  • 4 Detection and Parsing Modes

  • FPV Real-time Video Capture

  • Multi-terminal Alarm Notifications

  • 5 Versatile Usage Methods

  • 12km+ Long-range Recognition and Positioning



Specifications:

Supported drone typesDJI, Autel, Hubsan, FPV racing drones, DIY drones, etc.
Detection rangeSupports custom scanning from 70 MHz to 6.2 GHz (default bands: 400 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz; other bands configurable)
Positioning modelsAll DJI models, selected Autel models
Detection distance≥10 km for mainstream drones, ≥2 km for FPV drones
DID/RID positioning distanceDID ≥10 km, RID ≥3 km
Positioning accuracy≤10 meters
FPV video detectionSupports all analog video transmissions from 500 MHz to 6 GHz (customizable)
Video transmission detection radius≥1.5 km (line-of-sight, clean electromagnetic environment)
Video capture distance≥1.5 km (line-of-sight, clean electromagnetic environment)
Alarm typesSound, vibration, light
Power supplyLithium battery powered
Battery life≥6 hours (main unit)
Device dimensions744.5mm(including antenna)×280mm×104mm(length×width×height)
