Home / Products / High-tech Products / Anti Drone Equipment / DR400-B Portable Drone Detection & Communication Device
DR400-B Portable Drone Detection & Communication Device DR400-B Portable Drone Detection & Communication Device

loading

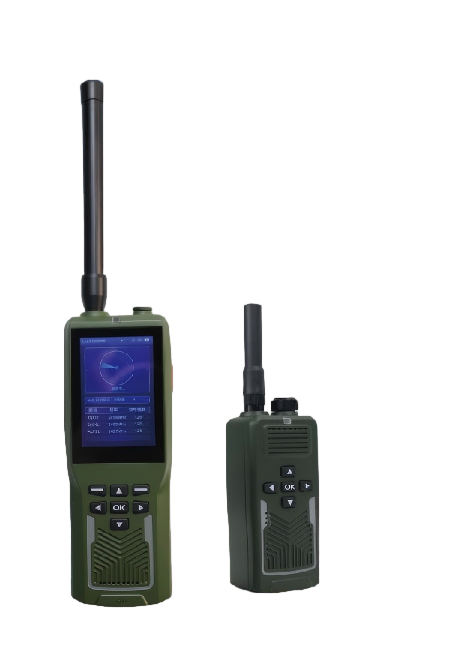

DR400-B Portable Drone Detection & Communication Device

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Basing on radio frequency spectrum sensing and Al technology, the device has the functions of
detection, display and control, etc. Encrypted voice communication can be set up to realize alarm
linkage between groups. It adopts self-developed low power consumption digital receiver technol-
ogy and leading power management technology, and has an external ultra-wideband antenna. It
can accurately identify multiple types of drones such as quadcopter, fixed-wing, DIY, and FPV
drones, and then emits sound, light, vibration, and voice alarm.
Availability:
Quantity:
Inquire Add to Basket

Features:

  • Team Synchronized Alarm

  • Dual-mode Detection

  • FPV Superior Early Warning

  • 360° Full-spectrum Passive Detection

  • 1+N Team Combat


Specification:

Recognition typeMost mainstream brand drones and most FPV drones
Detection frequency bandsSupports customizable scanning from 70 MHz to 6.2GHz; defaults include 400 MHz,800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz
Detection range≥1.5 km
Detection response time≤3 seconds
Detection principleSpectrum scanning and spectrum feature recognition
Warning methodsSound, vibration, light
Communication range≥500m (Open and unobstructed)
Power supply modeRemovable lithium battery
Battery lifeDetection host ≥6 hours; Team terminal ≥10 hours
Storage space32G memory card,MAX 256GB
Operating temperature-20°℃~+50°℃
Power supply modeLithium battery
Supported languagesChinese, English, Other language customizable
Dimensions199mm*75mm*40mm(Detection host)
117mm*56mm*37mm(Team terminal)


Previous:
Next:
Drone Detection and Communication Device Team Combat UAV Detector Encrypted Voice Alert System FPV Early Warning Device Passive Drone Monitoring System

Related Products

DR400-D Portable FPV Video Transmission Detected and Captured Device
DR400-D Portable FPV Video Transmission Detected and Captured Device
DR400-E(A) Portable Drone Detection and Wrist Watch Alert Coordination Device
DR400-E(A) Portable Drone Detection and Wrist Watch Alert Coordination Device
DR500-AB Portable Drone Detection and Jamming Shield
DR500-AB Portable Drone Detection and Jamming Shield
DR600-A All-Scenario Drone Detection and Positioning Device
DR600-A All-Scenario Drone Detection and Positioning Device
DR200-S3 Fixed Precise Spoofing Device
DR200-S3 Fixed Precise Spoofing Device
DR200-S2 Fixed High Power Spoofing Device
DR200-S2 Fixed High Power Spoofing Device
DR200-S1 Fixed Navigation Spoofing Device
DR200-S1 Fixed Navigation Spoofing Device
DR200-C Fixed Drone Detection and Jamming Device
DR200-C Fixed Drone Detection and Jamming Device
Vehicle-based Drone Detection and Jamming Equipment
DR100-AB Vehicle-based Drone Detection and Jamming Equipment

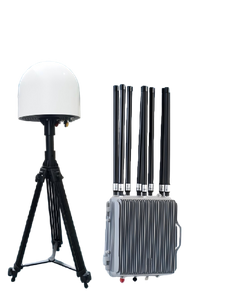

DR200-AB(C) Fixed Drone Detection, Jamming, and Spoofing Integrated Equipment
